Description

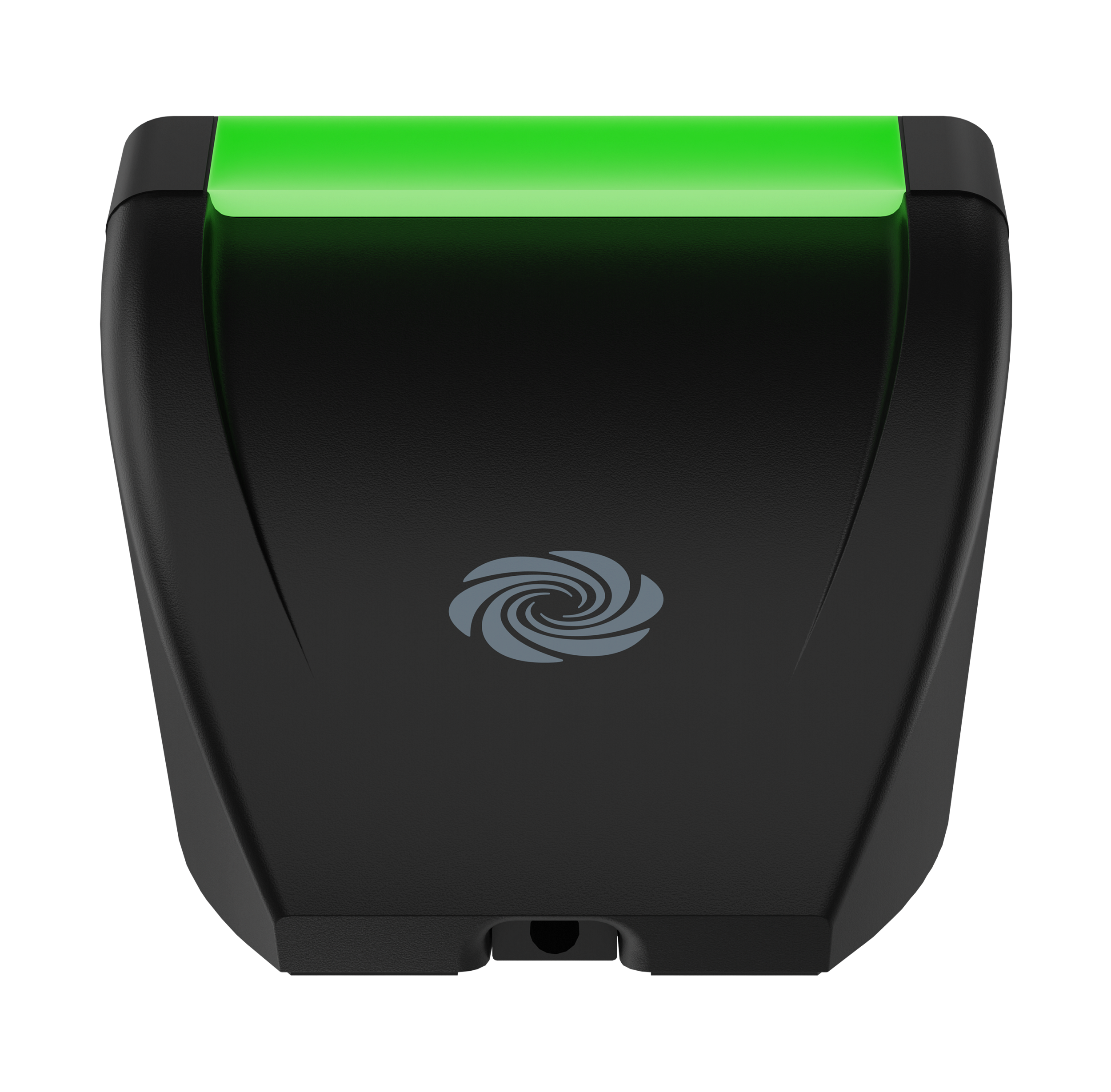

The TSS‑470E‑TTK-B-T tabletop kit provides a stylish tabletop enclosure for a TSS‑470E‑B‑T desk scheduling touch screen. The TSS‑470E‑TTK-B-T is ideal for placement within a hoteling space or on a shared desk.

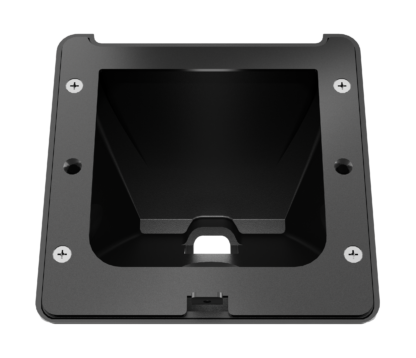

When installed in the enclosure, the TSS‑470E sits flush with the enclosure housing and is tilted at a 45° angle. Any cables are routed through the rear of the enclosure through a strain-relieving grommet. The complete assembly may be placed on any flat, level surface for use. A security screw is also provided to prevent unauthorized removal of the touch screen from the enclosure.
Technical Specifications
Construction
Plastic, enclosure, textured black, 45° fixed operating angle, for freestanding tabletop use
Dimensions
Height 3.47 in. (88 mm)
Width 3.95 in. (100 mm)
Depth 4.19 in. (107 mm)
Weight
1.1 lb (500 g)
