Crestron TSW-770/1070-MUMK-B

Original price was: $170.00.Current price is: $102.00.

Mullion Mount Kit for TSW-770 and TSW-1070 Series, Black

Permits a TSW‑770, TSW‑1070, TSS‑770, or TSS‑1070 series touch screen to be mounted to the mullion of an interior glass wall, window, or partition. Ideal for mounting at the entrance to a meeting space for room scheduling applications.

Description

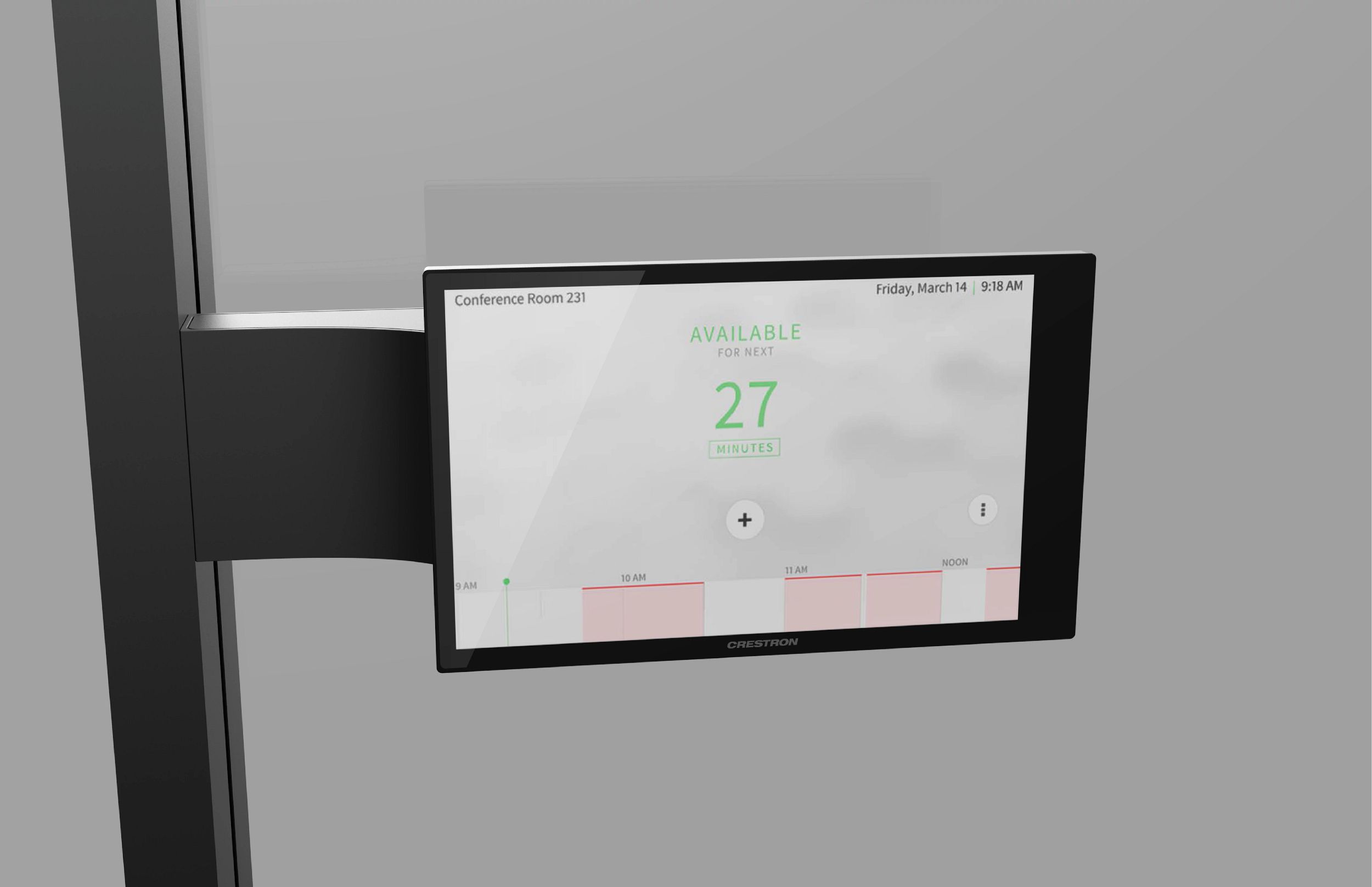

The TSW-770/1070-MUMK permits a TSW‑770 , TSW‑1070 , TSS‑770 , or TSS‑1070 series touch screen touch screen to be attached to the mullion of an interior glass wall, window, or partition. The TSW-770/1070-MUMK mounts a compatible touch screen to the left or right of any hollow, metallic vertical mullion. Two mounting brackets are provided that allow the TSW-770/1070-MUMK to be installed in one of two configurations (side mount or front mount). Wiring is run to the touch screen from inside the mullion to create a clean, finished appearance.

The TSW-770/1070-MUMK is ideal for mounting at the entrance to a meeting space for room scheduling applications, and it is compatible with the TSW‑770‑LB and TSW‑1070‑LB light bars to provide a clear indication of the room availability status.

Key Features
  • Permits mounting a TSW‑770, TSW‑1070, TSS‑770, or TSS‑1070 series touch screen to the mullion of an interior glass wall, window, or partition
  • Ideal for mounting at the entrance to a meeting space for room scheduling applications
  • Installs in either side or front mount configuration
  • Wiring is run inside the mullion for a finished appearance
  • Compatible with TSW‑770‑LB and TSW‑1070‑LB light bars for a clear indication of the room availability status
  • Available in black or white finish

Technical Specifications

Construction

Housing Aluminum, steel

Mounting Attaches to the inside surface of a hollow metallic mullion in side or front mount configuration

Dimensions

Without touch screen Height: 2.52 in. (64 mm) Width: 8.97 in. (228 mm) Depth: 1.70 in. (43 mm)

With TSW-770 or TSS-770 series touch screen installed Height: 4.17 in. (106 mm) Width: 9.30 in. (236 mm) Depth: 2.44 in. (62 mm)

With TSW-1070 or TSS-1070 series touch screen installed Height: 5.87 in. (149 mm) Width: 10.63 in. (270 mm) Depth: 2.46 in. (62 mm)

Additional information

Weight 1.76 lbs
Dimensions 11.02 × 6.69 × 3.15 in
