Description
The UC-MX50-Z-UPGRD solution provides all of the necessary components to upgrade a deployed Crestron Flex tabletop conference device and camera (CCS‑UC‑1‑X KIT) to a complete video conference system for use with Zoom Rooms software. It supports single or dual video displays (not included) and features a UC Bracket Assembly and cables.
Native Zoom Rooms™ Software Experience
The UC-MX50-Z-UPGRD system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.
Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The system’s built-in content ingest device switches to the connected laptop’s UC platform and returns to the native Zoom Rooms platform when disconnected.
Simplified Deployment
The UC Bracket Assembly (UC‑BRKT‑250‑P‑Z‑ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.
Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Visit www.crestron.com/xiocloud for additional information.
Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.
Visit www.crestron.com/flexcare for additional information.
Deployment Resources
View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.
Key Features
- Upgrades a single Crestron Flex tabletop conference device to a complete video conference system
- Present, call, conference, and collaborate using your own device’s UC conference platform (BYOD) or the native Zoom Rooms™ platform
- Native Zoom Rooms™ software provides a consistent, simple user experience with one‑touch meeting joins
- Complete kit contains a UC bracket assembly and cables
- Easy to specify and install — no custom design, programming, or software installation required
- Network management and provisioning and system alerts through the XiO Cloud® service
- Premium‑level support with Crestron Flex Care (optional)
- Enterprise-grade security – connects and communicates securely over any enterprise or SMB network
- Supports single or dual video displays (not included)
Technical Specifications
Included Components
UC‑BRKT‑250‑P‑Z‑ASSYorUC‑BRKT‑260‑P‑Z‑ASSY UC Bracket Assembly for Zoom Rooms systems, comprised of: UC-ENGINE-P-Z: UC Engine for Zoom Rooms videoCAT5 to USB 3.0 converter for content ingestMounting hardware
CBL‑4K‑DP‑HD‑6 DisplayPort™ to HDMI Cable, 6 ft (1.8 m)
CBL-CAT5E-7 Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m)
UC-CAM-WMK Wall Mount Kit for Crestron® Cameras

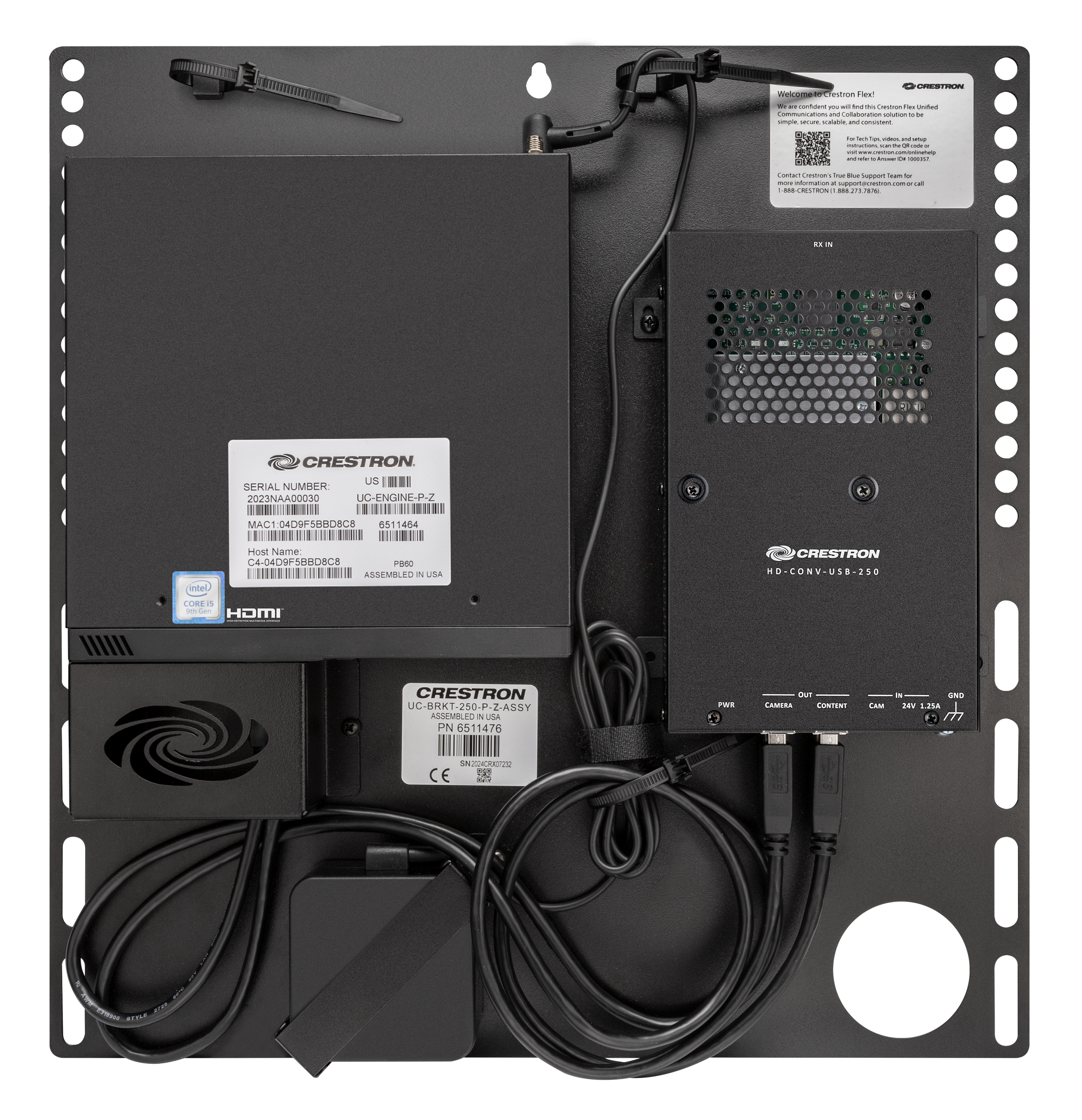

UC Bracket Assembly
Mini PC Intel Core® processor with Windows® 10 IOT Edition OS and 100/1000 Mbps Ethernet connectivity
UC Client Zoom Rooms software
Management Client XiO Cloud Service
Content Ingest HDMI input via CAT5 to USB 3.0 converter
Display Output Single or dual display support
Power UC Engine: 100‑240VAC, 50/60 Hz adapter (included); CAT5 to USB 3.0 converter: 24VDC via external 100‑240VAC, 50/60 Hz adapter (included)
Construction Metal mounting bracket, black, preassembled with UC Engine (UC‑ENGINE‑P‑Z) and CAT5 to USB 3.0 content ingest device
Mounting Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate
Dimensions Height: 15.00 in. (381 mm) Width: 14.50 in. (368 mm) Maximum Depth: 1.87 in. (48 mm)
Maximum Weight 8.0 lb (3.7 kg)
