Crestron UC-MX70-NC-T
Original price was: $8,600.00.$5,160.00Current price is: $5,160.00.
Menu
Original price was: $8,600.00.$5,160.00Current price is: $5,160.00.

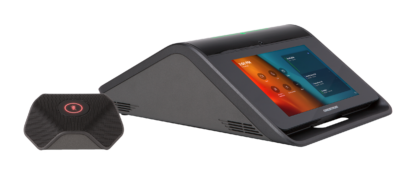

The UC-MX70-NC-T Crestron Flex advanced tabletop conferencing system provides a large room video conference solution for use with Microsoft Teams® Rooms software. It supports single or dual video displays (not included) and features a Crestron Flex tabletop conference device, UC bracket assembly, microphone pod, power supply, and cables.
Native Microsoft Teams® Rooms Experience
The UC-MX70-NC-T system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.
Intuitive User Interface with Impressive Audio
With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (CCS‑UC‑1‑X‑T‑V) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices. The conference device also offers optional control of room lighting, shades, thermostats, and other equipment.
Simplified Deployment
To simplify installation, the UC Bracket Assembly provides preassembled components on one ready-to-mount bracket. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron’s direct connection method further simplifies installation with a single connection from the Crestron Flex tabletop conference device to the UC Bracket Assembly.
High‑Definition Video Conferencing
High-definition video conferencing can be achieved by utilizing the IV-CAM-P12-B , IV-CAM-P12-W , IV-CAM-P20-B , IV-CAMP20-W , IV-CAM-I12-B , IV-CAM-I20-B , and IV-CAM-I20-W cameras. Microsoft Teams certified third-party cameras are also compatible with the system.
Crestron Control System Integration
The UC-MX70-NC-T integrates with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.
Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The system’s built-in content ingest device switches to the connected laptop’s UC platform and returns to the native platform when disconnected.
Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud® service is an IoT cloud-based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Visit www.crestron.com/xiocloud for additional information.
Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® branded hardware, expedited advance replacements, and a discounted rate for onsite support.
Visit www.crestron.com/flexcare for detailed terms and conditions and additional information.
Dual Control Option
A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.
Deployment Resources
View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.
CCS‑UC‑1‑X‑T‑V Crestron Flex tabletop conferencing device:PW‑2420RU: Universal power supply and power cordCable, CAT5e, RJ‑45‑to‑RJ‑45, 12 ft (3.66 m);Cable management hardware
UC‑BRKT‑250‑P‑T‑ASSY or UC‑BRKT‑260‑P‑T‑ASSY UC Bracket Assembly comprised of: UC Engine: Mini PC with Microsoft Teams videoADPT-USB-ENET: USB-to-Ethernet AdapterHDMI® over CAT5 to USB 3.0 converter for content ingestMounting hardware
CCS-UCA-MIC Extension microphone pod
CBL‑4K‑DP‑HD‑6 DisplayPort™ to HDMI Cable, 6 ft (1.8 m); secondary display
CBL-CAT5E-7 Ethernet LAN cable for UC Engine, RJ‑45-to-RJ‑45, black, 7 ft (2.1 m)
CBL‑HD‑6 HDMI Interface Cable, 6 ft (1.8 m); primary display
CBL‑HD‑THIN‑HS‑6 Thin HDMI cable, Type A male‑to‑male, 6 ft (1.8 m); content sharing
CBL-USB-A-BMICRO-6 USB Cable, USB Type A Male to Micro‑B Male cable, 6 ft (1.8 m)
DM‑CBL‑ULTRA‑PC‑20 (2) Ethernet LAN cable, CAT6a, RJ‑45‑to‑RJ‑45, blue, 20 ft (6.1 m)
Touch Screen 7 in. (178 mm) diagonal capacitive multi‑touch TFT active matrix color LCD, 1280 x 800 pixels
UI Microsoft Teams Rooms UI plus optional Crestron room control UI
Mic Mute Symbol and Light Bar (2) Capacitive buttons with bi‑color LEDs, either button toggles between mute and unmute
AEC Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction, full‑duplex IEEE 1329 Type 1 compliant
Speaker Full range speaker; Amplifier Power: 11 W; 95 dB SPL at 0.5 m maximum output; Frequency Response: 90 Hz to 22 kHz
Microphones 360° quad mic array; Pickup Range (typical): 20 ft (6 m)
Extension Microphones Supports two mic pods, model CCS‑UCA‑MIC (sold separately)
Occupancy Sensor 6 ft (1.83 m) PIR range in front of touch screen
Ethernet 100 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex, DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Active Directory® authentication, digest access authentication, password login, XiO Cloud service, Microsoft Intune® client
USB USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (cable included)
Power 24VDC via external 100‑240VAC, 50/60 Hz power pack, model PW‑2420RUNOTE: The CCS‑UC‑1‑X‑T‑V cannot be powered by Power over Ethernet or PoE+.
Dimensions Height: 4.11 in. (104 mm) Width: 8.92 in. (227 mm) Depth: 12.74 in. (324 mm)
Weight 5.5 lb (2.5 kg)

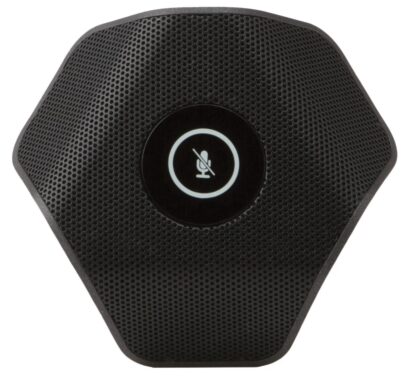

Model CCS-UCA-MIC
Communications A2B bus protocol, slave, synchronous data, multichannel I2S/TDM to I2S/TDM
Microphone Triple mic array with (3) cardioid electret elements
Pickup Range 20 ft (6 m) typical, 360°
Mic Mute (1) Capacitive button with bi‑color LED, toggles between mute and unmute (affects all system mics)
Connectors (2) RJ9 4P4C connector, female
Power Powered via the CCS-UC-1 through the A2B bus
Dimensions Height: 0.97 in (25 mm) Width: 3.81 in (97 mm) Depth: 3.42 in (87 mm)
UC Engine Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity
UC Client Microsoft Teams Rooms
Management Client XiO Cloud Service
Content Ingest HDMI input via CAT5 to USB 3.0 converter
Display Output Single or dual display support
Display Output Resolution 1080p
Power UC Engine: 100‑240VAC, 50/60 Hz adapter (included); CAT5 to USB 3.0 converter: 24VDC via external 100‑240VAC, 50/60 Hz power pack (included)
Construction Metal mounting bracket, black, preassembled with UC Engine and CAT5 to USB 3.0 content ingest device
Mounting Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate
Dimensions Height: 15.00 in. (381 mm) Width: 14.50 in. (368 mm) Depth: 1.87 in. (48 mm)
Weight 8.0 lb (3.7 kg)
Enclosure Lightly textured black finish, plastic housing
Mounting Freestanding, stackable, surface mount and wall/ceiling mount option with bracket (black plastic)
Dimensions Height: 1.35 in. (34 mm), 1.77 in. (45 mm) with bracket Width: 5.04 in. (128 mm), 5.36 in. (137 mm) with bracket Depth: 5.04 in. (128 mm)
Weight 8.9 oz (253 g) without bracket
| Weight | 33.22 lbs |
|---|---|
| Dimensions | 22.83 × 18.5 × 17.32 in |
