Description
The UC-MX70-Z Crestron Flex advanced tabletop conferencing system provides a large room video conference solution for use with Zoom Rooms® software. It supports single or dual video displays (not included) and features a Crestron Flex tabletop conference device, AI collaboration camera, UC bracket assembly, microphone pod, power supply, and cables.
Native Zoom Rooms Software Experience
The UC-MX70-Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.
Intuitive User Interface with Impressive Audio
With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (CCS‑UC‑1‑X) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices.
Simplified Deployment
To simplify installation, the UC Bracket Assembly provides preassembled components on one ready-to-mount bracket. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.
High-Definition Video Conferencing
The included AI collaboration camera (UC-CAM-L1) features a wide-angle 103° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 20.30 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom intelligently detects the people in the room and frames them for an optimal view.
Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The system’s built-in content ingest device switches to the connected laptop’s UC platform and returns to the native platform when disconnected.
Enterprise-Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud® service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Visit www.crestron.com/xiocloud for additional information.
Deployment Resources
View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.
Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® branded hardware, expedited advance replacements, and a discounted rate for onsite support.
Visit www.crestron.com/flexcare for detailed terms and conditions and additional information.
Key Features
- Tabletop video conferencing solution for Zoom Rooms® software
- Present, call, conference, and collaborate using your own device’s UC conference platform (BYOD) or the native Zoom Rooms platform
- Native Zoom Rooms touch screen UI provides a consistent user experience with simple operation and one‑touch meeting joins
- Complete kit contains a Crestron Flex tabletop conference device, AI collaboration camera, UC bracket assembly, microphone pod, power supply, and cables — just add a display and mount
- Easy to specify and install — no custom design, programming, or software installation required
- Network management and provisioning and system alerts through the XiO Cloud® service
- Premium‑level support with Crestron Flex Care (optional)
- Enterprise‑grade security ‑ connects and communicates securely over any enterprise or SMB network
- Supports single or dual video displays (not included)
Technical Specifications
Included Components
CCS‑UC‑1‑X Crestron Flex tabletop conferencing device includes: PW-2420RU Universal power supply and power cordCable, CAT5e, RJ‑45‑to‑RJ‑45, 12 ft (3.66 m)Cable management hardware
UC‑BRKT‑250‑P‑Z‑ASSYorUC‑BRKT‑260‑P‑Z‑ASSY UC Bracket Assembly for Zoom Rooms systems, comprised of: UC Engine: Mini PC with Zoom Rooms systemsCAT5 to USB 3.0 converter for content ingestMounting Hardware
UC-CAM-L1 AI collaboration camera
CCS-UCA-MIC Extension microphone pod
CBL‑4K‑DP‑HD-6 Active Converter Cable, DisplayPort™ to HDMI®, 18 Gbps, 6 ft (1.8 m); secondary display
CBL‑CAT5E‑7 Ethernet LAN cable, CAT5e, RJ‑45‑to‑RJ‑45, black, 7 ft (2.1 m)
CBL‑HD-6 HDMI Interface Cable, 6 ft (1.8 m); primary display
CBL‑HD‑THIN‑HS‑6 Thin HDMI cable for connecting display device, Type A male‑to‑male, 6 ft (1.8 m)
CBL-USB-A-BMICRO-6 USB 2.0 A – Micro-B cable, 6 ft (1.8 m)
DM-CBL-ULTRA-PC-20 (2) Ethernet LAN cable for touch screen, CAT6a, RJ‑45‑to‑RJ‑45, blue, 20 ft (6 m)

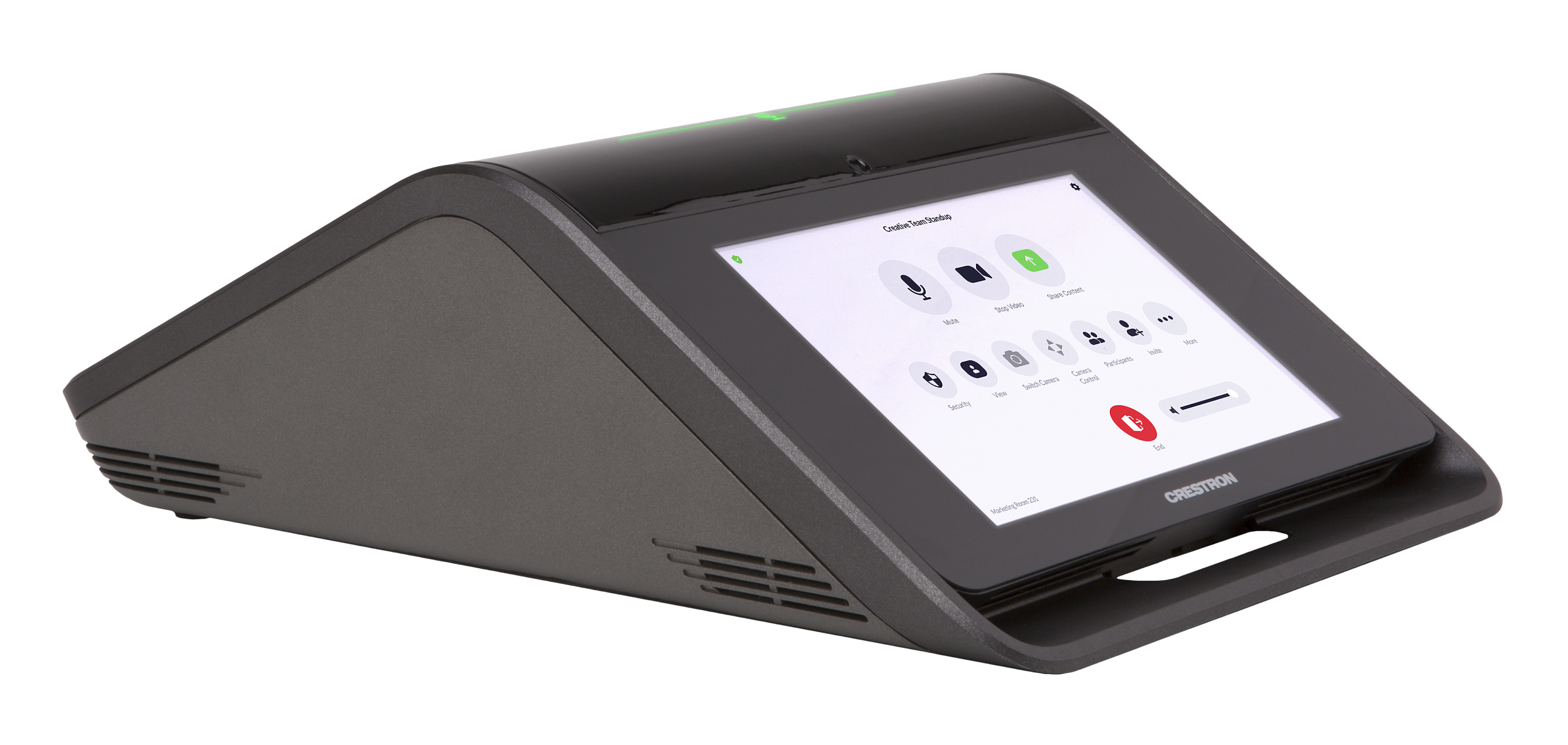

Crestron Flex tabletop conferencing device
Touch Screen 7 in. (178 mm) diagonal capacitive multi‑touch TFT active matrix color LCD, 1280 x 800 pixels
UI Zoom Rooms UI
Mic Mute Symbol & Light Bar (2) Capacitive buttons with bi‑color LEDs, either button toggles between mute and unmute
AEC Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction; full‑duplex IEEE 1329 Type 1 compliant
Speaker Full range speaker, 11 W amplifier power, 95 dB SPL at 0.5 m maximum output, 90 Hz to 22 kHz frequency response
Microphones 360° quad mic array, 20 ft (6 m) typical pickup range
Extension Microphones Supports two mic pods, model CCS‑UCA‑MIC (sold separately)
Occupancy Sensor 6 ft (1.8 m) PIR range in front of touch screen
Ethernet 100 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex, DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Active Directory authentication, digest access authentication, password login, XiO Cloud service, Microsoft Intune® client
USB USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (model UC-ENGINE-P) (cable included)
Power 24 VDC via external 100‑240 VAC, 50/60 Hz power pack, model PW‑2420RU (included)NOTE: The CCS-UC-1-X cannot be powered by Power over Ethernet or PoE+.
Dimensions Height: 4.11 in. (104 mm) Width: 8.92 in. (227 mm) Depth: 12.74 in. (324 mm)
Weight 5.50 lb (2.5 kg)
Microphone Pod
Model CCS-UCA-MIC
Communications A2B bus protocol, slave, synchronous data, multichannel I2S/TDM to I2S/TDM
Microphone Triple mic array with (3) cardioid electret elements
Pickup Range 20 ft (6 m) typical, 360°
Mic Mute (1) Capacitive button with bi-color LED, toggles between mute and unmute (affects all system mics)
Connectors (2) RJ9 4P4C connector, female
Power Powered via the CCS-UC-1-X through the A2B bus
Dimensions Height: 0.97 in. (25 mm) Width: 3.81 in. (97 mm) Depth: 3.42 in. (87 mm)
Camera
Image Sensor 20.30 Megapixels 1 in. CMOS Sensor
Lens High precision, wide angle, aspherical glass lens
Field of View 103º diagonal, 92º horizontal, 65º vertical
Aperture f/2.9
Autozoom Genius Framing automatic lossless digital zoom intelligently frames around people in the room
Connectivity USB 3.0 port (via USB to PoE Adapter)
Power 5VDC power adapter
Resolution/FPS HD 1080p @ 30 fps
Dimensions Height: 2.1 in. (53 mm) Width: 4.8 in. (122 mm) Depth: 3.5 in. (89 mm)
Weight 1.3 lb (0.6 kg)
UC Bracket Assembly
UC Engine Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity
UC Client Zoom Rooms Software
Management Client XiO Cloud service
Content Ingest HDMI input via HDMI to USB 3.0 converter
Display Output Single or dual display support
Display Output Resolution 1080p
Power UC Engine: 100‑240VAC, 50/60 Hz adapter (included); CAT5 to USB 3.0 converter: 24VDC via external 100‑240VAC, 50/60 Hz power pack (included)
Construction Metal mounting bracket, black, preassembled with UC Engine and CAT5 to USB 3.0 content ingest device
Mounting Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; the bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate
Dimensions Height: 15.00 in. (381 mm) Width: 14.50 in. (368 mm) Maximum Depth: 1.87 in. (48 mm)
Maximum Weight 8.0 lb (3.7 kg)
